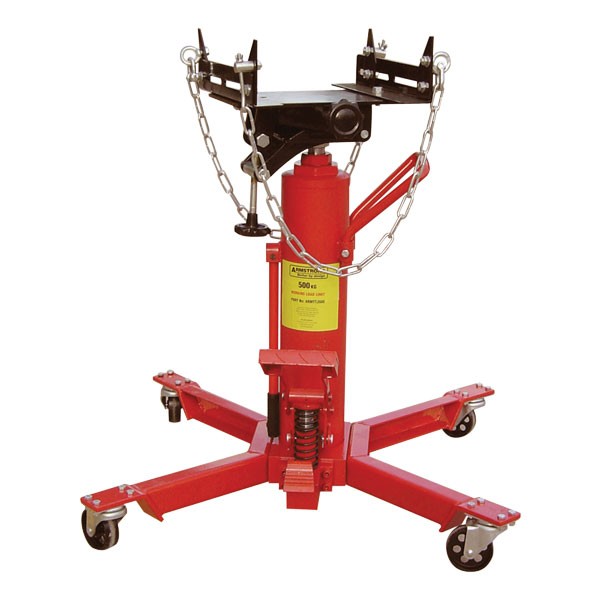

Heavy Duty Under Hoist Telescopic Transmission Jack - 500Kg

In stock

$1,355.20
OR

Quick Overview

• 500kg capacity
• Heavy duty under hoist transmission jack
• Ideal for the removal & replacement of transmissions, engines & differentials in under hoist situations
• Safety overload valve
• Hydraulic stroke limitation
• Economical high quality unit

Downloads

Download ARMTTJ500 Specification Sheet

ARMTTJ500

Double click on above image to view full picture

Zoom Out
Zoom In

Additional Images

  • ARMTTJ500
  • ARMTTJ500

Product Features

• Heavy duty quality transmission jack 500Kg capacity
• Ideal for the removal & replacement of transmissions, engines & differentials in under hoist situations
• Two stage telescopic ram giving greater lift range & control over the load
• Foot operated pump allows user to free hands to position load
• Wide base for added stability & manoeuvrability
• Heavy duty steel wheels & full swivel ball bearing castors
• Four wheel castors allows easy manoeuvrability & positioning
• Equipped with tilting saddle, adjustable fingers & rails
• Complete with safety chain for added safety when raising & lowering loads

Product Attributes

Part No. ARMTTJ500
Brand Armstrong
Capacity 00500 Kg
Minimum Height (mm) 870
Maximum Height (mm) 1800
Base Area (mm) 800 x 800
Power Source Manual Foot Hydraulic
Jack Usage Standard Auto
Weight (Kg) 91.0000
Repair Kit Part No. Contact Us
Country of Manufacture China
