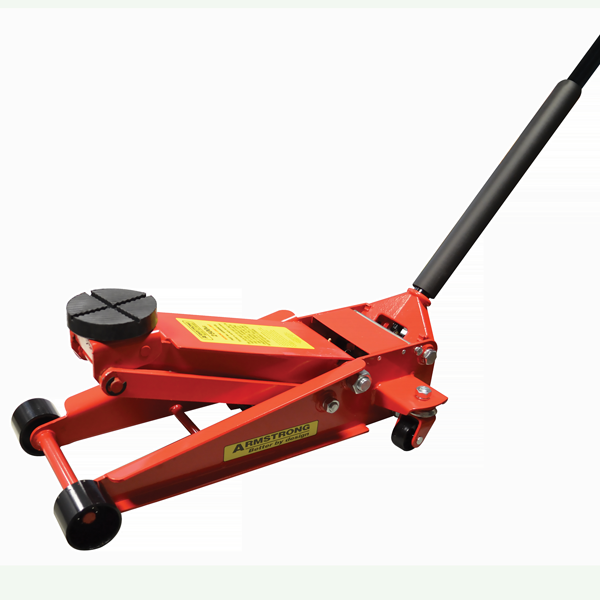

Quick Lift Trolley Jack - 2,500kg

In stock


Quick Overview

2,500kg "quick lift" trolley jack

"Quick lift" is a double pump piston action designed to quickly lift the unloaded head cap to the desired positioning point before the vehicle is lifted.


Double click on above image to view full picture

Zoom Out
Zoom In

Additional Images

  • ARMM901QL
  • ARMM901QL

Product Features

• 2500kg capacity
• Low profile design - minimum head cap height 102mm
• Rear castors for ease of maneuverability
• Heavy duty castors and wheels for long service life
• Rubber covered handle to protect bodywork
• Fast "quick lift" two piston pump action no load lift - 7 to 8 pumps for maximum height
• Professional quality and tested to Australian standards
• Raised height 520mm
• Heavy duty seals and hardware
• Universal joint release control for greater control over lowering speed

Product Attributes

Part No. ARMM901QL
Brand Armstrong
Capacity 02,500 Kg
Minimum Height (mm) 102
Maximum Height (mm) 520.7
Chassis Height (mm) 165
Width Front (mm) 295
Width Rear (mm) 368.3
Overall Length (mm) 711.2
Weight (Kg) 44.0000
Country of Manufacture China
